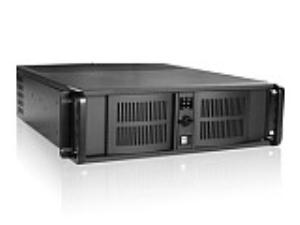

The D-300-FS incorporate performance and capacity in a 3U form factor. It features two 5.25 and six 3.5 bays for high density storage application. Whether it's web server, database server, D-300-FS can accommodate the thermal requirements of dual processor and Raid drive storage needs. The 7 PCI slots support PCI, PCI 64bits, AGP, and PCI-Express add-on cards which enable future upgrades for customized functions and application needs. D-300-FS is a cost effective chassis for data and storage server.
Features
3 Way Aluminum Front Panel with Locks
Front Access USB2.0 x2
80mm x1, 60mm x1 Cooling Fan
Front Mount ATX Power Supply
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis
Specifications
RoHS Compliance Version : Yes Form factor : 3 U Standard Drive Bays : 3.5" Drives: 1 3.5" Drive (internal): 5 5.25" Drives: 2 Indicators : Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) Switches : Power, Reset Supported PSU Type : PS2 - up to 160mm deep Expansion Slots : 7 Security : Front Bezel Key Lock Material of Front Bezel : Aluminum alloy Material of Handle : SECC Zinc-Coated Steel Material of Main Chassis : 1.2mm SECC Zinc-Coated Steel ( Japan Made ) Color of Front Bezel : Black Color of Main Chassis : Black Front Connector : 2x USB 2.0 Air Filter : Removable & Washable Motherboard Size : 12 x 9.6 (ATX, microATX) Cooling Fan : 1x60mm, 1x80mm Optional Fan: : 60mm x1, 80mm x3 Dimensions (WxHxD) : 19.00" x 5.25" x 20.80" 482.6 mm x 133.3 mm x 528.3 mm
