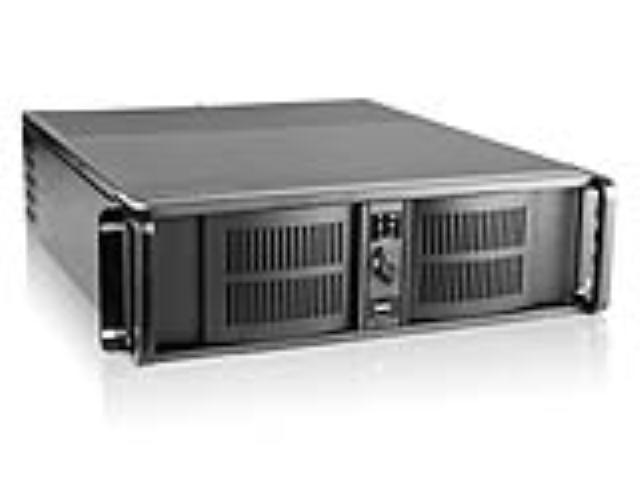

The 3U industrial rackmount chassis D Storm D-300. Optional BPU series enable hot-swappable storage and RAID configuration. D-300 backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance.
Features
Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
60mm x1 Cooling Fan
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
Optional Aluminum Chassis (model number D-300A)
Specifications
RoHS Compliance Version : Yes Form factor : 3 U Standard Drive Bays : 3.5" Drives: 2 3.5" Drive (internal): 1 5.25" Drives: 4 Indicators : Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) Switches : Power, Reset Supported PSU Type : 1U, 2U Expansion Slots : 7 Security : Front Bezel Key Lock Material of Front Bezel : Aluminum alloy Material of Handle : SECC Zinc-Coated Steel Material of Main Chassis : 1.2mm SECC Zinc-Coated Steel ( Japan Made ) Color of Front Bezel : Black Color of Main Chassis : Black Front Connector : 2x USB 2.0 Air Filter : Removable & Washable Motherboard Size : 12 x 9.6 (ATX, microATX) Cooling Fan : 1x60mm Optional Fan: : 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required) Ordering Information (Part Number) : Black Bezel:D-300 Blue Bezel:D-300-BLUE Red Bezel:D-300-RED Silver Bezel:D-300-SILVER Dimensions (WxHxD) : 19.00" x 5.25" x 20.80" 482.6 mm x 133.3 mm x 528.3 mm Notes : - the length of 2U redundant power supply might conflict with hotswap drive cages. - optional Aluminum body model number D-300A.
