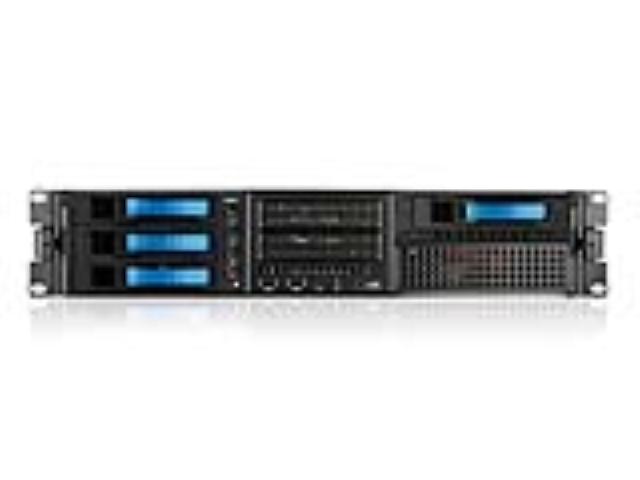

E204L-M1B3SA series rackmount chassis is designed with 4 x 3.5" hotswap drive bays, one 5.25" drive bays, and two 3.5" drive bays. Four 80mm fans are equipped with chassis to provide the best air ventilation preventing critical equipment from heat damage. E204L-M1B3SA also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications. 2U EATX Rugged Rackmount 4x3.5" Hotswap Chassis
Features
1.2mm Steel Body Chassis
80mm x4 Cooling Fans
Supports E-ATX Motherboard
Supports Front Access USB2.0 x2
4x 3.5" Hotswap Drive Bays with Optional Color
Specifications
Model Number E204L-M1B3SA RoHS Compliance Version Yes Form factor 2 U Standard Drive Bays 3.5" Drives: 2 Hotswap 3.5": 4 5.25" Drives: 1 Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III Indicators Power, HDD Switches Power, Reset Supported PSU Type 2U Expansion Slots 6x low profile Material of Handle Aluminum Material of Main Chassis Zinc-Coated Steel SECC 1.2mm Color of Main Chassis : Black Front Connector : 2x USB 2.0 Motherboard Size : 12 x 13 (EATX, ATX, microATX) Cooling Fan : 4x80mm Ordering Information(Part Number) Black HDD Handle : E204L-M1B3BK Blue HDD Handle : E204L-M1B3BL Red HDD Handle : E204L-M1B3RD Silver HDD Handle : E204L-M1B3SL Dimensions (WxHxD) : 19.00" x 3.50" x 25.10"(482.6 mm x 88.9 mm x 637.5 mm)
