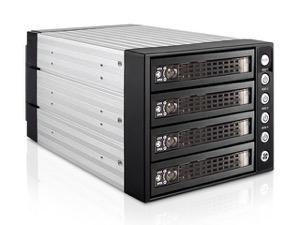

High level Raid and high availability storage in compact design, BPU-340SATA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.
Features
Stylish aluminum heat-sink body
Support Hot-Swap & RAID Configuration (need an additional RAID controller)
Aluminum Design with Conductive Dissipation Grooves
Power, fan and high temperature LED indicators
High Performance Transfer Rate up to 6.0 Gb/s
Support 2.5"/3.5" SAS I/II & SATA I/II/III HDDs
Equipped with Fan Speed Control Switch
6TB Hard Drive Compatible
Triangle Key Lock HDD Tray
Specifications
RoHS Compliance Version : Yes Standard Drive Bays : Hotswap 3.5": 4 5.25" Drives: 3 Hotswap HDD Type: : 3.5" SAS I/II & SATA I/II/III Indicators : Power, HDD, fan, and high temperature Security : Key Lock Material of Handle : Plastic Material of Main Chassis : Aluminum Design with Conductive Dissipation Grooves Color of Main Chassis : Black Package Content : SATA Cable Included (4pcs) Cooling Fan : 1x80mm Dimensions (WxHxD) : 5.75" x 4.96" x 8.03" 146.0 mm x 126.0 mm x 204.0 mm
