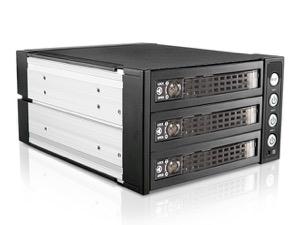

Create more space for hard drive with hot-swap capability, BPU-230SATA series supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides light weight but strong stability and extra 70mm fan keep hard drive at maximum performance.
High density multi-disk storage backplane that allows multiple 3x3.5" SAS/SATA hard drives to be mounted into 2 standard 5.25". Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD),Security System,SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup
Features
Stylish aluminum heat-sink body
Support Hot-Swap & RAID Configuration (need an additional RAID controller)
Aluminum Design with Conductive Dissipation Grooves
Power, fan and high temperature LED indicators
High Performance Transfer Rate up to 6.0 Gb/s
Support 2.5"/3.5" SAS I/II & SATA I/II/III HDDs
Equipped with Fan Speed Control Switch
6TB Hard Drive Compatible
Triangle Key Lock HDD Tray
Specifications
RoHS Compliance Version : Yes Standard Drive Bays : Hotswap 3.5": 3 5.25" Drives: 2 Hotswap HDD Type: : 3.5" SAS I/II & SATA I/II/III Indicators : Power, HDD, fan, and high temperature Security : Key Lock Material of Handle : Plastic Material of Main Chassis : Aluminum Design with Conductive Dissipation Grooves Color of Main Chassis : Black Package Content : SATA Cable Included (3pcs) Cooling Fan : 1x70mm Dimensions (WxHxD) : 5.75" x 3.39" x 8.22" 146.0 mm x 86.1 mm x 208.8 mm
