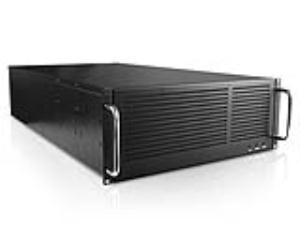

The EB-445-PM storage server series rackmount has the functionality and flexibility to make the chassis to be a new breed of storage server. As Port Multiplier technology has become a more cost effective solution, we provide an up to 45x 3.5" HDD drive capacity storage chassis via SATA connections and offer a redundant power supply solution to ensure total up time of mission critical server applications. 4U 45 3.5" HDD Bays EATX Storage Server Chassis eSATA Port Multiplier
Features
High density storage server (45 HDDs + 1 HDD for OS) in 4U form factor
Dual power supplies to support both HDDs and sever system
6x 120mm cooling fans to keep hot air out of your critical storage system
No hassle on cable routing via dedicated Port Multiplier HDD backplanes with 9x SATA cables (cables included)
Durable and rugged body structure
The most economic storage solution
SATA connections with Port Multiplier function to support RAID configurations
JMicron JMB575 Port Multiplier chipset
Specifications
Model Number : EB-445-PM RoHS Compliance Version : Yes Form factor : 4 U Standard Drive Bays : 3.5" Drive (internal): 46 Hotswap HDD Type : 3.5" SATA I/II/III Indicators : Power, HDD Switches : Power, Reset Supported PSU Type : PS2 Expansion Slots : 7 Material of Front Bezel : Steel Material of Handle : Steel Material of Main Chassis : Steel Color of Front Bezel : Black Color of Main Chassis : Black Air Filter : Removable Motherboard Size : 12 x 13 (EATX, SSI EEB 3.6, ATX, microATX) Cooling Fan : 6x120mm Dimensions (WxHxD) : 19.00" x 7.00" x 32.26"(482.6 mm x 177.8 mm x 819.4 mm) Notes - 10x Molex power connectors are needed for hard drive backplanes (9) and cooling fans (1). - controllers with 9x SATA connectors and Port Multiplier function needed to access all 45 hard drives.
