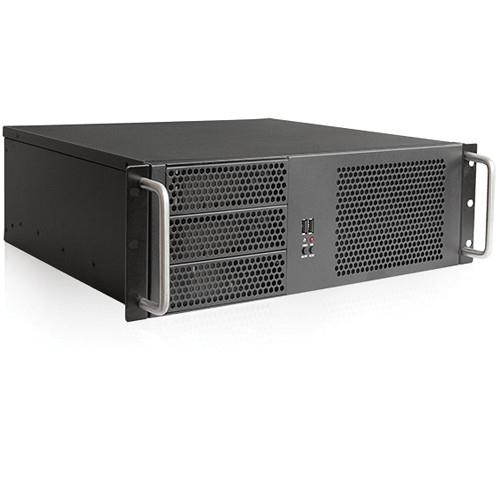

D-314-MATX is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.
Features
Industrial Chassis with 15" depth
Supports two front access USB2.0 ports
Power and HDD LEDs
Power and reset switch
Supports ATX PS2 power supply
Supports 4 full-height, add-on cards
Power and alarm reset switch
RoHS compliant
Specifications
RoHS Compliance Version : Yes Form factor : 3 U Standard Drive Bays : 3.5" Drive (internal): 4 5.25" Drives: 2+1 Indicators : Power, HDD Switches : Power, Reset Supported PSU Type : PS2 Expansion Slots : 4 (full height & up to 165mm deep with hdds installed) Material of Front Bezel : SGCC 1.2mm Material of Handle : Steel Material of Main Chassis : SGCC 1.2mm Color of Front Bezel : Black Color of Main Chassis : Black Front Connector : 2x USB 2.0 Motherboard Size : 12 x 9.6 (ATX, microATX, mini-ITX) Optional Fan: : 80mm x2, 60mm x2 Dimensions (WxHxD) : 19.00" x 5.24" x 16.89" 482.6 mm x 133.1 mm x 429.0 mm Notes : - when ATX MB is in place, the available 5.25" drive bays will reduce to 2 because MB occupies the spacing of the bottom 5.25" bay.
