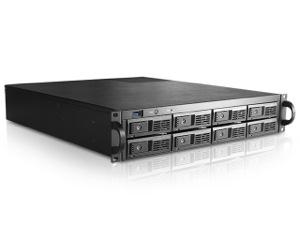

The M-280-MATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis has two SFF-8087 connector on the backplane to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors. 2U 3.5" 8-Bay Trayless Storage Server Rackmount Chassis
Features
8 trayless hot-swappable bays for 3.5" HDDs
World's first trayless server rackmount
miniSAS (SFF-8087) backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
USB 3.0 in front for easy access
Supports standard ATX power supplies
Compatible with redundant power supplies
High density storage server chassis
Specifications
RoHS Compliance Version : Yes Form factor : 2 U Standard Drive Bays : 2.5" Drive (internal): 1 Hotswap 3.5" : 8 Hotswap HDD Type : 3.5" SAS I/II & SATA I/II/III Indicators : Power, HDD Switches : Power, Reset Supported PSU Type : Standard ATX (PS2) Expansion : Slots : 4 (Low profile) Security : Key Lock Material of Front Bezel : Aluminum with Steel Material of Handle : Aluminum Material of Main Chassis : Steel Color of Front Bezel : Black Color of Main Chassis : Black Front Connector : 1x USB 3.0 Motherboard Size : 9.6 x 9.6 (microATX, mini-ITX) Cooling Fan : 3x80mm Dimensions (WxHxD) : 19.01" x 3.47" x 21.69"(482.9 mm x 88.1 mm x 550.9 mm) Notes - may need right angle miniSAS (SFF-8087 to SFF-8087) cables on hdd backplane side (p/n: CAGE-AAMMMI50-H-90). - each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply. - HDD backplane is compatible with SAS drives w/o SAS features supported.
