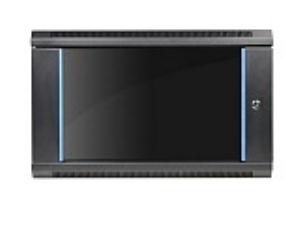

Elegant and secured WM645B wall mount cabinet by CLAYTEK. The easy side panel access is convenient to perform routine maintenance, but also can be locked to prevent unauthorized access. Three ways, top, bottom, and rear cabling tunnels enable data and cable routing. WM series incorporate optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. Heat-treated glass door provides extra strength and able to silkscreen logos, marks, and labels to boost product image.
Features
Sturdy and Rugged Welded Frame Structure Comes Pre-Assembled
Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
Three Ways, Top, Bottom, and Rear Cabling Tunnels
Wallmount or Desktop Standalone
Meet IP20 Protection Grade
Enforced Strengthen Glass Front Door with Security Key Lock
Removable Side Panels with Easy Handy Latches
2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish
Front Lock [side panel key lock]
Specifications
RoHS Compliance Version : Yes Form Factor : 6U Industry Standard : Accord with ANSI/EIARS-310-D, Material : Posts:2.0mm SPCC High-Quality Cold Roll Steel Enclosure:SPCC 1.2mm Loading Capacity : 130 lbs Supported Chassis Depth : 16" and under Internal Dimensions : Depth: 16" max Cooling : Optional 2x120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120) Dimensions (WxHxD) : 23.62" x 14.96" x 17.72" 600 mm x 380 mm x 450 mm Notes : - HTS code: 8473.30.5100 (ECCN is not applicable).
